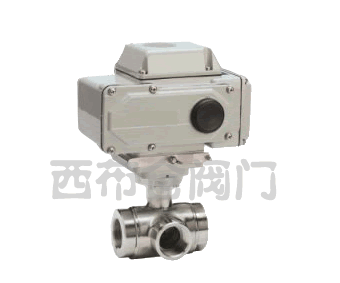

不锈钢电动三通球阀
通径 |
外形尺寸 |
接法兰尺寸 |
mm |
L |
D0 |
L1 |
L2 |
H |
D |
D1 |
D2 |
C |
f |
n-Φd |
15 |
150 |
75 |
140/178 |
62/75 |
185/191 |
95 |
65 |
46 |
14 |
2 |
4-Φ14 |
20 |
150 |
75 |
164/214 |
75/91 |
197/225 |
105 |
75 |
56 |
16 |
2 |
4-Φ14 |
25 |
180 |
90 |
164/214 |
75/91 |
199/227 |
115 |
85 |
65 |
16 |
2 |
4-Φ14 |
32 |
200 |
100 |
190/295 |
91/112 |
240/266 |
140 |
100 |
76 |
18 |
3 |
4-Φ18 |
40 |
220 |
110 |
210/295 |
101/112 |
255/271 |
150 |
110 |
84 |
18 |
3 |
4-Φ18 |
50 |
240 |
120 |
247/340 |
112/127 |
286/307 |
165 |
125 |
99 |
20 |
3 |
4-Φ18 |
65 |
260 |
130 |
276/398 |
127/139 |
330/335 |
185 |
145 |
118 |
20 |
3 |
4-Φ18 |
80 |
280 |
140 |
308/438 |
139/159 |
349/383 |
200 |
160 |
132 |
20 |
3 |
8-Φ18 |
100 |
320 |
160 |
348/562 |
159/206 |
421/487 |
220 |
180 |
156 |
22 |
3 |
8-Φ18 |
125 |
380 |
190 |
432/724 |
176/228 |
485/557 |
250 |
210 |
184 |
22 |
3 |
8-Φ18 |
150 |
440 |
220 |
524/928 |
228/275 |
582/629 |
285 |
240 |
211 |
24 |
3 |
8-Φ22 |
200 |
550 |
275 |
948/1033 |
275/324 |
702/750 |
340 |
295 |
266 |
24 |
3 |
12-Φ22 |
|
